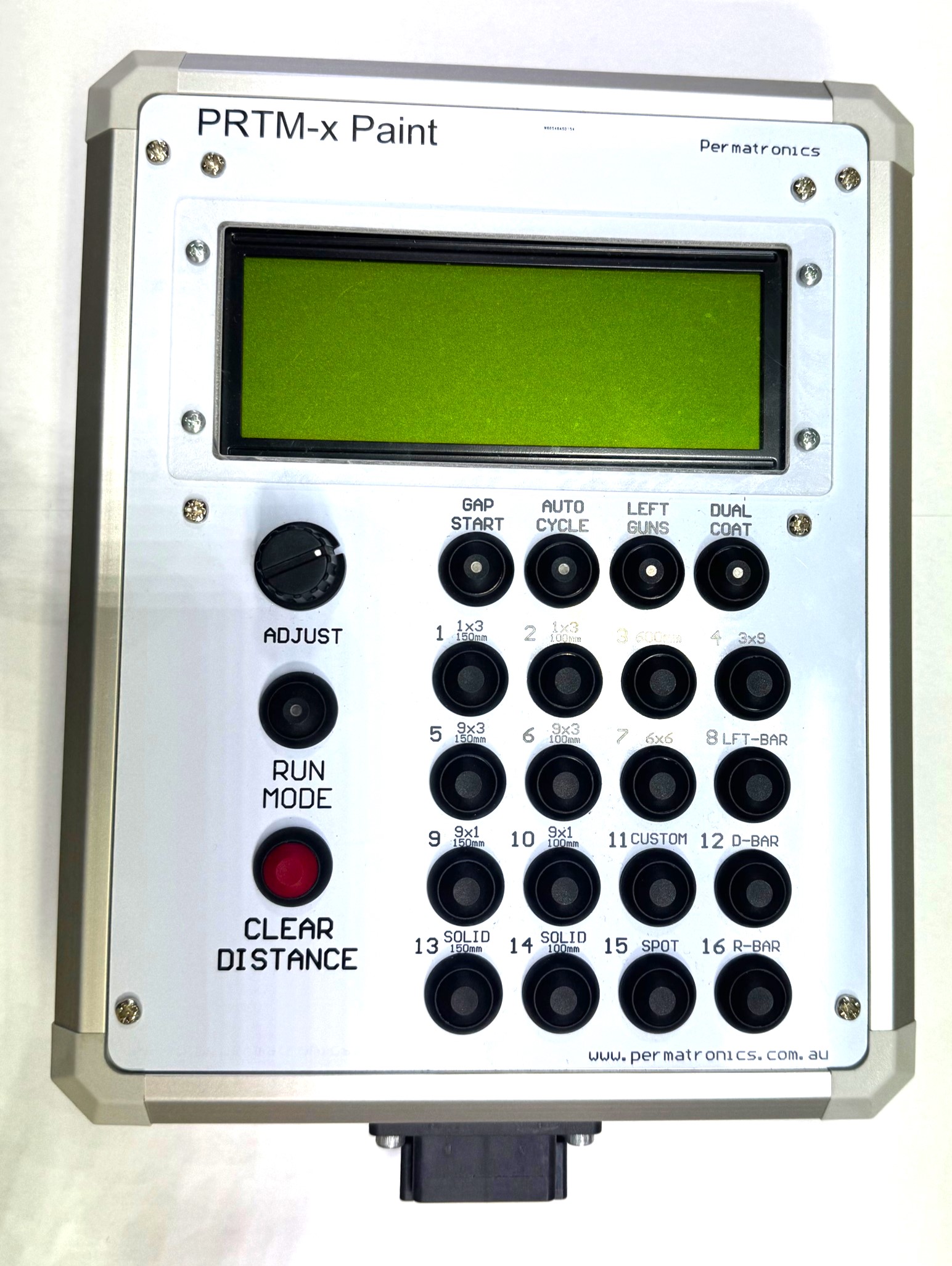

PRMx

Developed as a replacement for the PRM-6.

Features include:

12V operation.

4 x M5 100mm standard VESA mounting holes. 12 Independently controlled outputs. Configured for 4 paint guns, 4 dual coat paint guns and 4 bead guns.
16 programmable pattern selection.
Easy to read backlit display showing Line information, Current speed, Line adjustment,Line distance, Pattern paint usage, Wet film thickness
. Separate Start and Stop inputs for hand trigger use.
Switch inputs for Bead flush. Paint flush and Right cutout Gun outputs.
Normally closed E-Safety input to turn off all solenoids which can be wired into truck safety system.
Auto Cycle switch input for use with a hand or footswitch.
Line finish and Line change synchronisation feature.
Programmable Line offset to compensate for lazy gun outputs.
Programmable Bead Delay and Bead Advance to ensure correct bead coverage.
Dual Coat Gun output switch to run Dual coat guns.
4 Independent Job selection including different programmable patterns.
Datalogging of line types, distances and paint usages for each job. Optional Bluetooth adapter for exporting to tablet or PC
This product is constantly evolving with new features.
